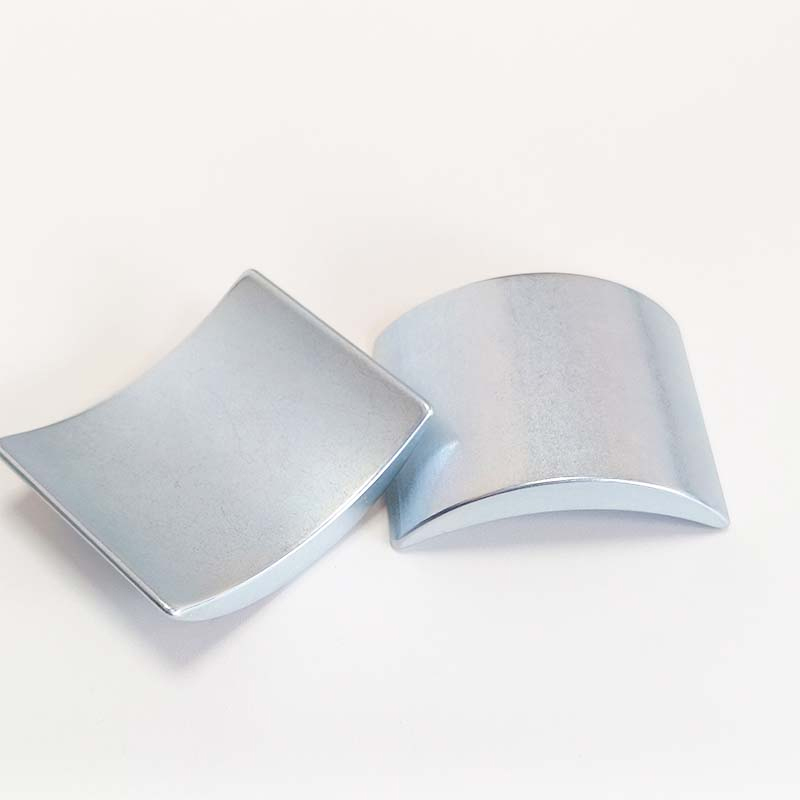

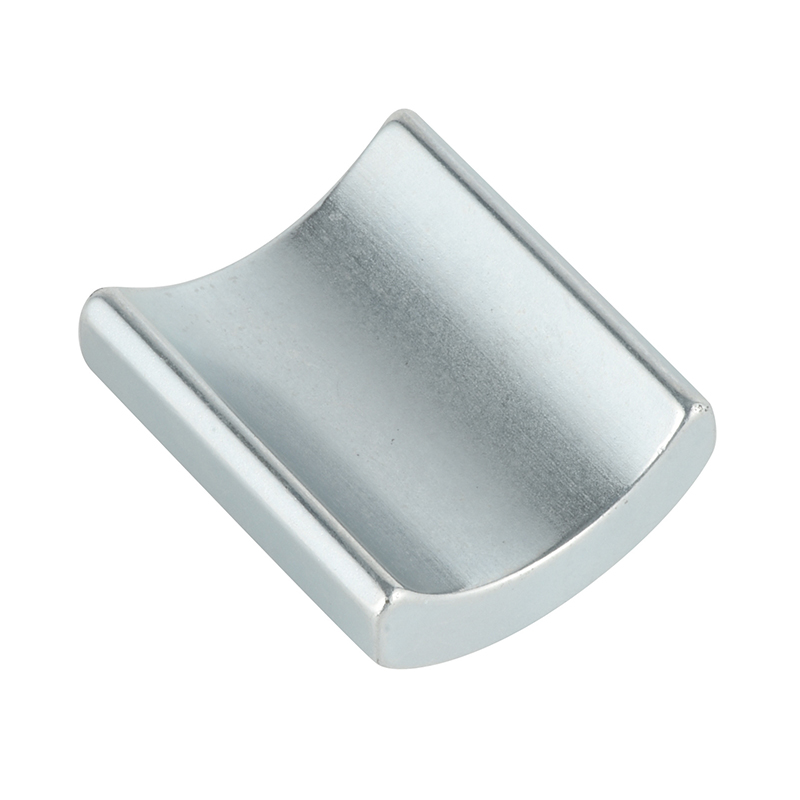

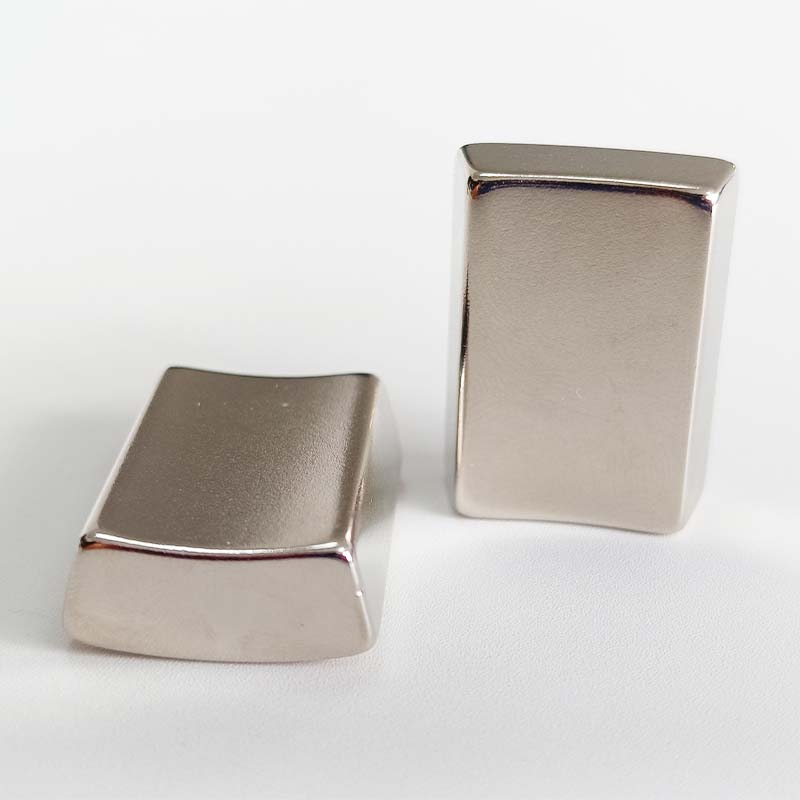

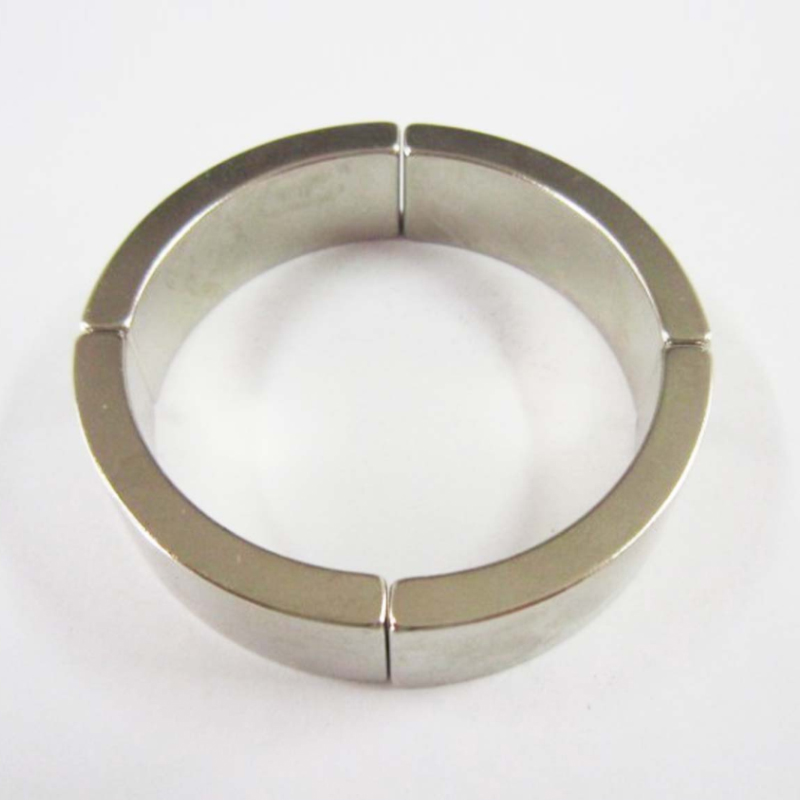

Neodymium arcu magnetem

NeoDylium Arci Magnes etiam dicitur curvam magnetes, communiter in variis permanens Magnet DC Motors, Motors Motors, BLCD Motors, Cras Motors, etc.

Inquisitio

Product Description:

Material: Neodymium / NDFEB / Neodymium ferrum Boron / Rara terra
Grade:
N35, N38, N40, N42, N45, N48, N50, N52, N54
N35M, N38M, N40M, N42M, N45M, N48M, N50M, N52M
N33H, N35H, N38H, N40H N42H, N45H, N48H, N50H, N52H
N33SH, N35sh, N38Sh, N40sh, N42sh, N45sh, N48SH, N50SH, N52sh
N33UH, N35uh, N38UH, N40UH, N42UH, N45UH, N48UH
N28EH, N30EH, N33EH, N35EH, N38EH, N40H N42EH N45EH
Plans: Nicuni / cadmiae / nigrum epoxy / glod
Dimensiones: Custom
Figura: Arc
Sample: Available
Tolerantia, ± 0.05mm - ± 0.1mm
Working Temperature: Max. 80-200 gradu Celsius
Processus: De Sinis-machining-coating, magneting-stipare
Packaging: Opp peram / Box, VIII boxes / lobortis
Shipment: per mare et aere Express
HS Code: 8505111000

Products ostende

Superficies coating & Corrosoin resistentia

Nickel (Ni-Cu-NI) Zinc (ZN) Epoxy Aureo

Genus Colo PRAEVALITAS Operatus
Temperamentum 		Commodum & idoneam Salis RAMULUS resistentia
Nickel (Nicuni) argentum 20-30 um ≤200 High oxidatio resistentia, bonum Glossa, firmum perficientur, diu muneris vitae > LXXII hrs
Zinc (ZN) caeruleus 10-20 um ≤160 Idoneam humilitatem requisita superficiem species & oxidatio resistentia > XLVIII hrs
Epoxy niger 10-30 um ≤120 apta summus anti-corrosio stricte atmospheric > XCVI hrs
Aureo Aureo 5-30 um ≤200 apta ornamentum accessiones, donum etc. > XXIV hrs

Tolerantia

Vexillum uber D.od Id L W H
<5mm ± 0.1mm ± 0.1mm ± 0.1mm ± 0.1mm ± 0.1mm
<10mm ± 0.1mm ± 0.1mm ± 0.1mm ± 0.1mm ± 0.1mm
<20mm ± 0.1mm ± 0.1mm ± 0.1mm ± 0.1mm ± 0.1mm
<50mm ± 0.1mm ± 0.1mm ± 0.1mm ± 0.1mm ± 0.1mm
<100mm ± 0.15MM ± 0.15MM ± 0.15MM ± 0.15MM ± 0.15MM
> 100mm ± 0.2mm ± 0.2mm ± 0.2mm ± 0.2mm ± 0.2mm

Magnetization Direction

Disc & cylindri-per crassitudine Disc & cylindri-per diameter Spheres- per diameter

Vectes ad plana superficiebus

Poles parte superficiebus

Block- per crassitudine Longitudo per block- Arc- per diamer

Poles in maius plana superficiebus

Poles minores plana superficiebus

Poles in extra & intus facies

Arc- per longitudinem Ring- per superficiebus Ring- per superficiebus

Poles in extra & intus facies

Planar Octupole Magnetization

Planar Quadrupole Magnetization

Seged NDFEB magnetica proprietatibus

Gradus REMANENCE Vim coactivam Intrinseca coercivity Maximus Working≤
BR (kg) BR (T) HCB
(Koe) 		HCB
(Ka / M) 		HCJ
(Koe) 		HCJ
(Ka / M) 		(BH) Carolus (mgoe) (BH) max
(KJ / M) 		℃
Max Min Max Min
N35 ≥11.8 ≥1.18 ≥10.8 ≥860 ≥12 ≥960 37 33 295 263 N ≤80
N38 ≥12.3 ≥1.23 ≥10.8 ≥860 ≥12 ≥960 39 36 310 287
N40 ≥12.7 ≥1.27 ≥11.0 ≥876 ≥12 ≥960 41 38 327 302
N42 ≥13.0 ≥1.30 ≥11.0 ≥876 ≥12 ≥960 43 40 343 320
N45 ≥13.3 ≥1.33 ≥11.0 ≥876 ≥12 ≥960 46 42 366 335
N48 ≥13.7 ≥1.37 ≥10.5 ≥836 ≥12 ≥960 49 45 390 358
N50 ≥14.0 ≥1.440 ≥10.5 ≥836 ≥12 ≥960 51 47 406 374
N52 ≥14.2 ≥1.42 ≥10.5 ≥836 ≥12 ≥960 53 49 422 390
N54 ≥14.4 ≥1.44 ≥10.5 ≥836 ≥11 ≥876 55 51 438 406
N35m ≥11.8 ≥1.18 ≥10.8 ≥860 ≥14 ≥1114 37 33 295 263 M ≤100
N38m ≥12.3 ≥1.23 ≥11.0 ≥876 ≥14 ≥1114 39 36 310 287
N40m ≥12.7 ≥1.27 ≥11.5 ≥915 ≥14 ≥1114 41 38 327 302
N42m ≥13.0 ≥1.30 ≥11.8 ≥939 ≥14 ≥1114 43 40 343 320
N45m ≥13.3 ≥1.33 ≥12.0 ≥956 ≥14 ≥1114 46 42 366 335
N48m ≥13.7 ≥1.37 ≥12.2 ≥972 ≥14 ≥1114 49 45 390 358
N50m ≥14.0 ≥1.440 ≥12.5 ≥995 ≥14 ≥1114 51 47 406 374
N52m ≥14.2 ≥1.42 ≥12.5 ≥995 ≥14 ≥1114 53 49 422 390
N33h ≥11.4 ≥1.14 ≥10.6 ≥844 ≥17 ≥1350 35 31 279 247 H ≤120
N35h ≥11.8 ≥1.18 ≥10.8 ≥860 ≥17 ≥1350 37 33 295 263
N38h ≥12.3 ≥1.23 ≥11.0 ≥876 ≥17 ≥1350 39 36 310 287
N40 ≥12.7 ≥1.27 ≥11.5 ≥916 ≥17 ≥1350 41 38 327 302
N42h ≥13.0 ≥1.30 ≥11.8 ≥940 ≥17 ≥1350 43 40 343 320
N45H ≥13.3 ≥1.33 ≥12.0 ≥955 ≥17 ≥1350 46 42 366 335
N48h ≥13.6 ≥1.36 ≥12.2 ≥971 ≥17 ≥1350 49 45 390 358
N50h ≥14 ≥1.4 ≥12.5 ≥995 ≥17 ≥1350 51 47 406 374
N52h ≥14.3 ≥1.43 ≥12.5 ≥995 ≥17 ≥1350 53 49 422 390
N33sh ≥11.4 ≥1.14 ≥10.6 ≥844 ≥20 ≥1592 35 31 279 247 Pungo ≤150
N35sh ≥11.8 ≥1.18 ≥10.8 ≥860 ≥20 ≥1592 37 33 295 263
N38sh ≥12.3 ≥1.23 ≥11.0 ≥876 ≥20 ≥1592 39 36 310 287
N40sh ≥12.6 ≥1.26 ≥11.5 ≥916 ≥20 ≥1592 41 38 327 302
N42sh ≥12.9 ≥1.29 ≥11.8 ≥940 ≥20 ≥1592 43 40 343 320
N45sh ≥13.2 ≥1.32 ≥12.0 ≥955 ≥20 ≥1592 46 42 366 335
N48sh ≥13.6 ≥1.36 ≥12.2 ≥971 ≥20 ≥1592 49 45 390 358
N50sh ≥14 ≥1.4 ≥12.5 ≥995 ≥20 ≥1592 51 47 406 374
N33uh ≥11.4 ≥1.14 ≥10.6 ≥844 ≥25 ≥1990 35 31 279 247 Ium ≤180
N35uh ≥11.8 ≥1.18 ≥10.8 ≥860 ≥25 ≥1990 37 33 295 263
N38uh ≥12.3 ≥1.23 ≥11.0 ≥876 ≥25 ≥1990 39 36 310 287
N40UH ≥12.6 ≥1.26 ≥11.5 ≥916 ≥25 ≥1990 41 38 327 302
N42uh ≥12.9 ≥1.29 ≥11.8 ≥940 ≥25 ≥1990 43 40 343 320
N45uh ≥13.2 ≥1.32 ≥12.0 ≥955 ≥25 ≥1990 46 42 366 335
N48uh ≥13.6 ≥1.36 ≥12.2 ≥971 ≥25 ≥1990 49 45 390 358
N28eh ≥10.4 ≥1.04 ≥9.50 ≥756 ≥30 ≥2388 30 26 239 207 EH ≤200
N30eh ≥10.8 ≥1.08 ≥9.50 ≥756 ≥30 ≥2388 32 28 255 223
N33eh ≥11.4 ≥1.14 ≥10.6 ≥844 ≥30 ≥2388 35 31 279 247
N35eh ≥11.8 ≥1.18 ≥10.8 ≥860 ≥30 ≥2388 37 33 295 263
N38eh ≥12.3 ≥1.23 ≥11.0 ≥876 ≥30 ≥2388 39 36 310 287
N4th ≥12.6 ≥1.26 ≥11.5 ≥916 ≥30 ≥2388 41 38 327 302
N42eh ≥12.9 ≥1.29 ≥11.8 ≥940 ≥30 ≥2388 43 41 343 320
N45eh ≥13.2 ≥1.32 ≥12.0 ≥955 ≥30 ≥2388 46 42 366 335
N30th ≥10.8 ≥1.08 ≥9.50 ≥756 ≥35 ≥2786 32 28 255 223 Th, ≤220
N33th ≥11.4 ≥1.14 ≥10.6 ≥844 ≥35 ≥2786 35 31 279 247
N35th ≥11.8 ≥1.18 ≥11.0 ≥876 ≥35 ≥2786 37 33 295 263
N38th ≥12.2 ≥1.22 ≥11.0 ≥876 ≥33 ≥2627 39 36 310 287
Dicta: Maximum opus temperatus pendeat in figura, magnitudine, et coating de magnetis, summa working temperatus in mensa est test notitia ad vexillum sample.3
